450kg YRTS150 Slewing Rotary Table Roller Ring Bearing High Precision

China 450kg YRTS150 Slewing Rotary Table Roller Ring Bearing High Precision supplier
450kg YRTS150 Slewing Rotary Table Roller Ring Bearing High Precision supplier 450kg YRTS150 Slewing Rotary Table Roller Ring Bearing High Precision supplier 450kg YRTS150 Slewing Rotary Table Roller Ring Bearing High Precision supplier 450kg YRTS150 Slewing Rotary Table Roller Ring Bearing High Precision supplier 450kg YRTS150 Slewing Rotary Table Roller Ring Bearing High Precision supplier

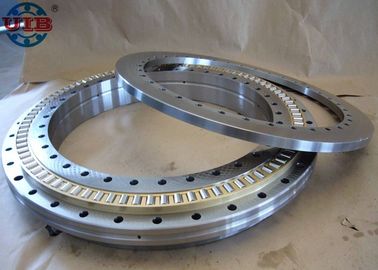

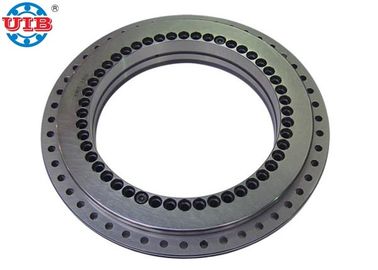

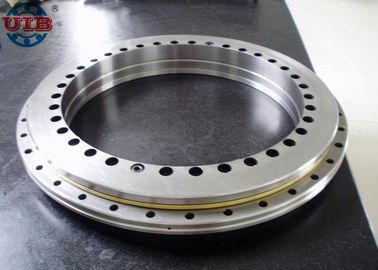

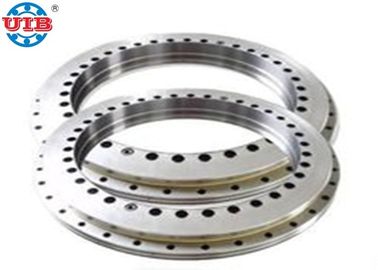

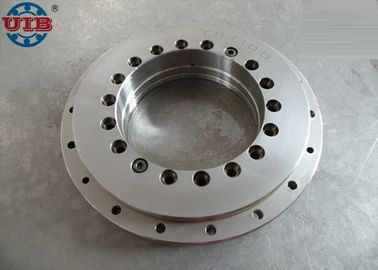

Large Image :  450kg YRTS150 Slewing Rotary Table Roller Ring Bearing High Precision

Product Details:

Place of Origin: China
Brand Name: UIB
Certification: ISO9001:2008
Model Number: YRTS150

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: negotiable
Packaging Details: Wrapped by plastic belt, export wooden package
Delivery Time: 10DAYS
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 100PCS PER MONTH
Detailed Product Description
Material: 50Mn, 42CrMo4 Grade: ABEC-5, ABEC-7
Weight: 450 Kg Inner Ring Range: ∮50~∮460mm
Outer Ring Range: ∮126~∮600mm Applicant: Rotary Table
High Light:

heavy duty turntable bearings

,

swivel plate bearing

450kg YRTS150 Slewing Rotary Table Roller Ring Bearing High Precision



YRTS Series bearing introduction:



YRT turntable bearing is a kind of outer ring spinning, inner ring supporting slewing mechanism, mainly divided into YRT, YRTS YRTM type three series, the three series of bearing has the same installation size, internal structure is different, the performance is similar.



YRTS series are composed of three columns of roller bearing, two columns axial roller to ensure stability of the axial bearing capacity, a list of the radial roller to ensure bearing can bear radial force and overturning moment effect, suitable for axial bearing slewing mechanism.



YRTS turntable bearing is mainly used for nc machine tool manufacturing industry, as its core component, China YRT accuracy of turntable bearing parameter standard also will be subject to international manufacturers.



Since entering the 21st century, especially as the country "high-end CNC machine tools and basic manufacturing equipment" special startup, greatly promote the development of the machinery and equipment industry, the high-speed, precision, composite, intelligent machine got further speed up the development process





YRTS bearing bearings type and size:

YRTS series (comply  with Germany INA/FAG code number)main sizes:

YRTS Series specification
bearing size boundary dimensions inner ring/outer ring ( locating hole)
d D T H C d1 dn dm d0/ds/TS/quantity dL/quantity
YRTS200 200 300 45 30 15 274 215 285 7 11 6.2 46 7 45
YRTS260 260 385 55 36.5 18 345 280 365 9.3 15 8.2 34 9.3 33
YRTS325 325 450 60 40 20 415 342 430 9.3 15 8.2 34 9.3 33
YRTS395 395 525 65 42.5 20 486 415 505 9.3 15 8.2 46 9.3 45
YRTS460 460 600 70 46 22 560 482 580 9.3 15 8.2 46 9.3 45



YRT bearing bearings are suitable for axial and radial bearing.





High slant stiffness and high precision, suitable for rotary table, chuck and iron tool head and bearing configuration in measurement and experiment. This type bearing has high requirements for matching equipment parts. The torque of the mounting screw must be controlled during installation. It is mainly used in high-precision CNC turntable, dividing head, military radar, aviation, aerospace and measurement and testing.

1. To coordinate structure is asking to see the picture, fixed by screw protect bearing parts, centering more easily to install, installation can loosen the set screw, after installation of fixed screw should be tightened or it is better to replace screw positioning screw.

2. L- section ring 2 can be installed with or without additional support ring

A) without support ring, bearing code YRT

B) with L- section ring support ring, bearing code YRT... The entire surface of the VSP, l-section ring must be supported.

3. The assembly force can only be passed through the mounting bearing ring, and must not pass through the rolling body.
Screw tightening order 1-6
Screw tightening order 1-6

4. The positioning screw applies torque wrench in the form of cross - crossing to tighten up to see image 2

(right).

5. Do not separate or exchange bearing parts for installation and removal.

6. The starting friction torque is 3~3.5 times the friction torque of the bearing in the dimension table





YRT slewing bearing design and install





slewing bearing design and installslewing bearing design and install2





Slewing bearing applicant:

450kg YRTS150 Slewing Rotary Table Roller Ring Bearing High Precision
