Chrome Steel Axial Slewing Ring Bearing ABEC 5 High Speed 550Mn 42CrMo4 Precision

China Chrome Steel Axial Slewing Ring Bearing ABEC 5 High Speed 550Mn 42CrMo4 Precision supplier

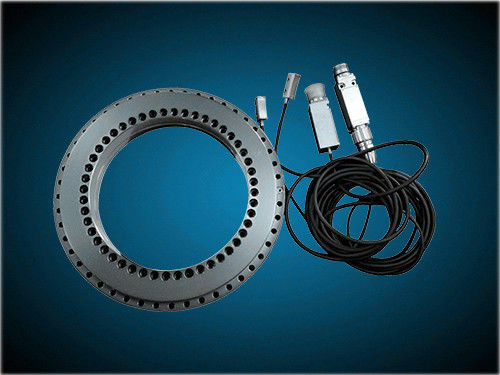

Large Image :  Chrome Steel Axial Slewing Ring Bearing ABEC 5 High Speed 550Mn 42CrMo4 Precision

Product Details:

Place of Origin: China
Brand Name: UIB
Certification: ISO9001:2008
Model Number: YRTM150

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: negotiable
Packaging Details: Wrapped by plastic belt, export wooden package
Delivery Time: 10DAYS
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 100PCS PER MONTH
Detailed Product Description
Material: 50Mn, 42CrMo4 Grade: ABEC-5, ABEC-7
Weight: 450 Kg Inner Ring Range: ∮50~∮460mm
Outer Ring Range: ∮126~∮600mm Applicant: Rotary Table
High Light:

rotary table bearing


swivel plate bearing

Chrome Steel Axial Slewing Ring Bearing ABEC 5 High Speed 550Mn 42CrMo4 Precision



YRT Series bearing introduction:


YRT turntable bearing is a kind of outer ring spinning, inner ring supporting slewing mechanism, mainly divided into YRT, YRTS YRTM type three series, the three series of bearing has the same installation size, internal structure is different, the performance is similar.


YRT series are composed of three columns of roller bearing, two columns axial roller to ensure stability of the axial bearing capacity, a list of the radial roller to ensure bearing can bear radial force and overturning moment effect, suitable for axial bearing slewing mechanism.


YRT turntable bearing is mainly used for nc machine tool manufacturing industry, as its core component, China YRT accuracy of turntable bearing parameter standard also will be subject to international manufacturers.


Since entering the 21st century, especially as the country "high-end CNC machine tools and basic manufacturing equipment" special startup, greatly promote the development of the machinery and equipment industry, the high-speed, precision, composite, intelligent machine got further speed up the development process


YRT bearing bearings  Applicant:


YRT bearing bearings are suitable for axial and radial bearing. High slant stiffness and high precision, suitable for rotary table, chuck and iron tool head and bearing configuration in measurement and experiment. This type bearing has high requirements for matching equipment parts. The torque of the mounting screw must be controlled during installation. It is mainly used in high-precision CNC turntable, dividing head, military radar, aviation, aerospace and measurement and testing.



YRT bearing bearings type and size:

YRTM series (comply  with Germany INA/FAG code number)main sizes:

YRTM slewing bearing catalog
slewing bearing size boundary dimensions Inner ring/outer ring(locating ring)
d D H H1 HM C DM D1 J J1 d0/ds/TS/quantity dL/quantity
YRTM150 150 240 41 27 10 12 214 214 165 225 7 11 6.2 34 7 33
YRTM180 180 280 44 30 10 15 244.5 244 194 260 7 11 6.2 46 7 45
YRTM200 200 300 45 30 10 15 271.2 274 215 285 7 11 6.2 46 7 45
YRTM260 260 385 55 36.5 13.5 18 343.8 345 280 365 9.3 15 8.2 34 9.3 33
YRTM325 325 450 60 40 15 20 412.6 415 342 430 9.3 15 8.2 34 9.3 33
YRTM395 395 525 65 42.5 17.5 20 485.5 486 415 505 9.3 15 8.2 46 9.3 45
YRTM460 460 600 70 46 19 22 557.7 560 482 580 9.3 15 8.2 46 9.3 45

YRTM series bearing
