Payment & Shipping Terms:
|Bearing Weight:||0.67KG||Boundary Size:||50*90*23 MM|
|Bearing Cage:||CCK, CA, MB Available||Grease Lubricate Speed:||2000 (r/min)|
|Oil Lubricate Speed:||2800 (r/min)||Adapter Sleeve Size:||H210|
|Bearing Precision Grade:||ABEC-1. ABEC-3, P0, P6, P5, P4, P2||Bearing Applicant:||Industrial Blower|

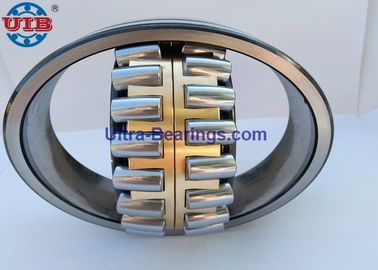

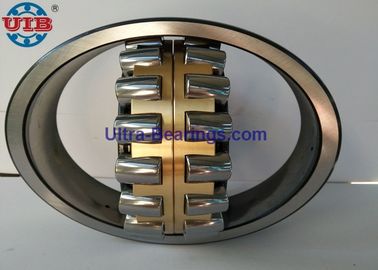

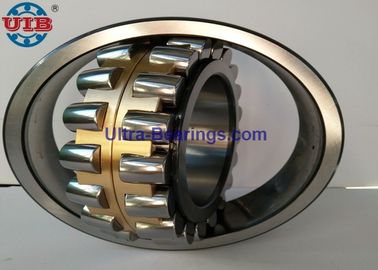

Double Row Sealed Spherical Steel Roller Bearing 50*90*23mm For Industrial Blower
Industrial blower bearing require high precision and long work life.
Our 22210 CCW33, 22210 MBW33, 22210 CCKW33 product advantage:
We using forged bearing rings, strict heat treatment for bearing inner rings and bearin external ring;
Polished rollers, low noise,
Super grinding ball groove in inner and outer ring,
Special serive from our bearing sales and technical teams: Seller provide bearing finall production drawing for mutral confirmation. Only after order confirmed,and seller received buyer deposit.
Bearing external shage size tolerance guantee to +/-0.001mm,
Bearing rings Hardness HRC60~62, using advanced heat treatment method.
Steel roller bearing brief introduction:
The Spherical roller bearing has a double row roller, with a common spherical raceway in the outer ring, with two raceway in the inner ring and an Angle of relative bearing axis.
This ingenious structure make it with automatic self-Spherical properties, and therefore susceptible to shaft and bearing box seat Angle error or the influence of shaft bending, suitable for installation error or shaft deflection caused by the Angle error of the occasion.
Steel roller bearing 22210 steel plant bearing Applicant:
Industrial blower, industrial fan bearing for equipmente OEM or replacement and repair market, aftersales market beraing.
Other Spherical roller bearing bearing applicant:
Paper making machinery, speed reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial reducer, vertical arrange ushering self-Spherical bearing.
|bearing type||ISO bearing NO.||OLD bearing NO.||ID||OD||WIDTH||Cr||Cor||grease lubricate
|Spherical roller bearing||(mm)||(mm)||(mm)||(kN)||(kN)||(r/min)||(r/min)||(kg)|
|Spherical roller bearing||22210CCK/W33+H310||253509||45||90||23||-||-||-||-||-|
|Spherical roller bearing||22210||3510||50||90||23||52.2||73.2||3800||4800||0.87|
|Spherical roller bearing||22210C/W33||53510Y||50||90||23||84.5||105||4000||5000||0.62|
|Spherical roller bearing||22210CC/W33||53510||50||90||23||83.8||102||4300||5300||0.614|
|Spherical roller bearing||22210TN1/W33||-||50||90||23||96.5||110||4300||5300||0.596|
|Spherical roller bearing||22210C||53510||50||90||23||—||—||—||—||0.64|
|Spherical roller bearing||22210CK||153510||50||90||23||—||—||—||—||0.64|
|Spherical roller bearing||22210K||113510||50||90||23||52.2||73.2||3800||4800||0.87|
|Spherical roller bearing||22210CK/W33||153510Y||50||90||23||84.5||105||4000||5000||0.62|
|Spherical roller bearing||22210CCK/W33||153510||50||90||23||83.8||102||4300||5300||0.614|
|Spherical roller bearing||22210KTN1/W33||-||50||90||23||96.5||110||4300||5300||0.596|
|Bearing size||22210 CCW33, 22210 MBW33, 22210 CCKW33|
|Bearing cage type||steel, brass,CA,CC,|
|grease lubricatespeed||4300 r/min|
|oil lubricate speed||5300 r/min|
|Bearing weight||0.67~ 0.75 kg|
|Dynamic load Cr||85 KN|
|Static load Cor||110 KN|
|Bearing applicant||industrial blower, industrial fan, others|
|Boundary size||50*90*23 MM|
Welcome to click site inquiry to us, we could reply you immediately!
