Payment & Shipping Terms:
|Grease Lubricate Speed:||750 (r/min)||Oil Lubricate Speed:||1000 (r/min)|
|Bearing Dimension:||220*340*118 MM||Bearing Cage:||CCK, CA, MB Available|
|Applicant:||Steel Plant Machine||Bearing Weight:||38.1 KG|
118mm Thickness Spherical Roller Bearing High Precision For Steel Plant Machinery
24044 MBW33 P5 product advantage:
Material advantage:forged bearing rings, strict heat treatment for bearing inner rings and bearin external ring;Bearing rings Hardness HRC60~62,bainite heat treatment
Tolerance advantage :Bearing external shage size tolerance guantee to +/-0.001mm,
Bearing parts advantage: Polished rollers, harden strength cage.
Special serive from our bearing: Seller provide bearing finall production drawing for mutral confirmation. Only after order confirmed,and seller received buyer deposit.
Main spherical roller bearing cage introduction:
Reinforced Press steel plate type cage (suffix E, domestic very few).
Press steel plate type cage (suffix CC),
Reinforced Glass fiber poly-amide 66 (suffix TVPB),
Machining brass two - plate cage (suffix MB).
Machined brass integral cage (suffix CA),
Stamping steel plate holder (suffix JPA) in vibration.
Brass cage for vibration (suffix EMA).
The same structure, code name on the bearing or different.
The installation for 24044 MBW33 P5 steel plant usage
The Spherical roller bearing is arranged between the inner ring of two raceway and the outer ring of the ball, and the bearing with drum roller is assembled. The curvature center of the raceway surface is consistent with the bearing center, so it has the same tuning function as the Spherical ball bearing.
When bending the shaft and the shell, the axial load can be adjusted automatically and in two directions. Radial load capacity is large, suitable for heavy load and impact load. The inner diameter of the inner ring is the bearing of the taper hole, which can be installed directly. Or use a compact sleeve and remove cylinder on the cylinder shaft. Maintain frame with sheet metal stamping, polyamide forming cage and copper alloy car.
Spherical roller 24044 MBW33 P5 bearing bearing applicant:
Steel making plant, steel manufacturer, paper making machinery, gear box bearing, rolling mill rolling mill rolls,speed reducer, railway vehicle axle, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial reducer, vertical arrange ushering self-Spherical bearing.
Spherical roller bearing 24044 MBW33 P5 brief introduction:
The Spherical roller bearing has a double row roller, with a common spherical raceway in the outer ring, with two raceway in the inner ring and an Angle of relative bearing axis.
This ingenious structure make it with automatic self-Spherical properties, and therefore susceptible to shaft and bearing box seat Angle error or the influence of shaft bending, suitable for installation error or shaft deflection caused by the Angle error of the occasion.
In addition to bearing radial load, the bearing can withstand the axial load of bidirectional effect.
Spherical roller bearing inside hole has two kinds of cylindrical and conical, conical taper hole taper for 1:30 and 1:12 two kinds, the conical bore bearing with adapter sleeve or withdrawal sleeves sets, the conical bore Spherical ball bearing can be conveniently and quickly assembled on the optical axis or ladder machine shaft.
The model of Spherical roller bearing is total 6 types:
Spherical roller bearing (20000CC);
Tapered hole Spherical roller shaft bearing (20000CCK type);
Spherical roller bearing (20000CC/W33);
Tapered hole Spherical roller bearing (20000CCK/W33);
Spherical roller bearing (20000CCK+H type) mounted on adapter sleeve;
Spherical roller bearings (20000CCK/W33+H) installed on adapter sleeve.
Our guarantee policy: Under normal usage of our P6 grade 24044 MB/ W33 product work life guarantee 3 year.
Spherical roller bearing 24044 MB/ W33 production
|Bearing type:||Spherical roller bearing||Roller row:||Double|
|cage material :||MB type||Ring material:||GCR15/ AISI52100|
|Dynamic load (KN):||1330||Oil hole:||3|
|Static load (KN):||2680||Bearing clearance:||C3|
|Bearing weight:||38.1 kg||Inner diameter:||220mm|
|Bearing applicant:||steel plant machine||Outer diameter:||340mm|
|Heat treatment method:||bainite heat treatment||Brand:||UIB,PBQ,ZBY|
24044 MB/W33 SPECIFICATION
|bearing type||ISO bearing NO.||OLD bearing NO.||ID||OD||WIDTH||Cr||Cor||grease lubricatedx
|Spherical roller bearing||(mm)||(mm)||(mm)||(kN)||(kN)||(r/min)||(r/min)||(kg)|
|Spherical roller bearing||24044 MB/W33||4453144||220||340||118||1330||2680||750||1000||38.1|
|Spherical roller bearing||24044CAF3||4053144W2||230||340||118||—||—||—||—||34|
|Spherical roller bearing||24044CAF3/W33||4053144W2K||230||340||118||—||—||—||—||34|
|Spherical roller bearing||24044CC/W33||4053144||220||340||118||1330||2680||750||1000||38.1|
|Spherical roller bearing||24044CCK30/W33||4453144||220||340||118||1330||2680||750||1000||38.1|
|Spherical roller bearing||24044CAK30/W33||4453144HK||220||340||118||-||-||-||-||39.5|
|Spherical roller bearing||24044CAK30||4453144H||220||340||118||-||-||-||-||38.67|
|Spherical roller bearing||24044CA/W33||4053144HK||220||340||109||-||-||-||-||31.4|
|Spherical roller bearing||24044CA||4053144H||220||340||118||-||-||-||-||40.7|
|Spherical roller bearing||24044X2CK||3153744H||220||340||112||-||-||-||-||42.49|
|Spherical roller bearing||24044C||-||220||340||118||1150||2500||850||1100||39.1|

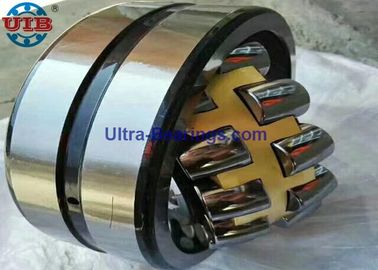

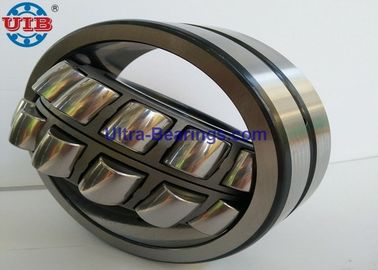

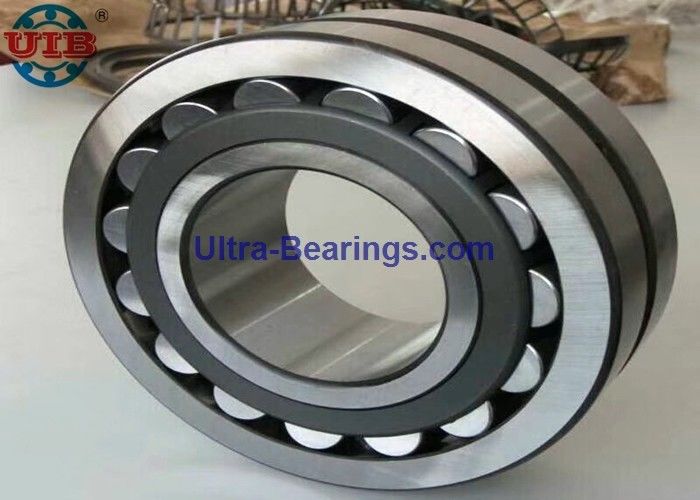

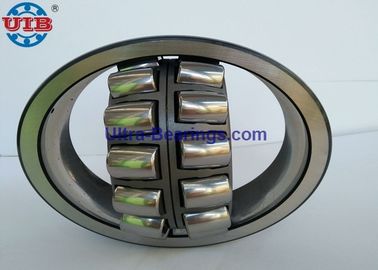

24044 MB/ W33 production image:
