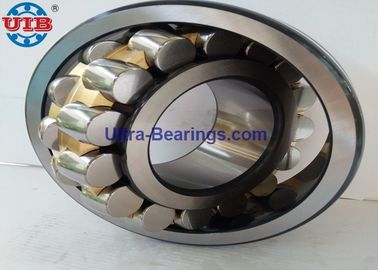

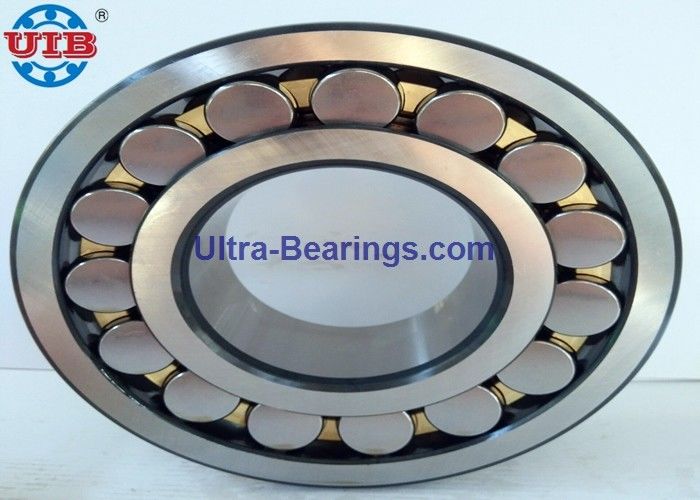

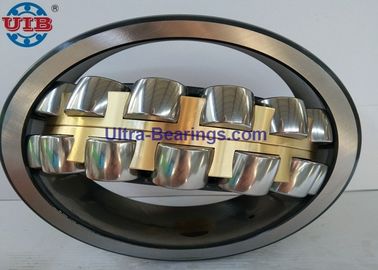

C3 CA Press Steel Spherical Roller Bearing High Temperature Resistant

China C3 CA Press Steel Spherical Roller Bearing High Temperature Resistant supplier
C3 CA Press Steel Spherical Roller Bearing High Temperature Resistant supplier C3 CA Press Steel Spherical Roller Bearing High Temperature Resistant supplier C3 CA Press Steel Spherical Roller Bearing High Temperature Resistant supplier

Large Image :  C3 CA Press Steel Spherical Roller Bearing High Temperature Resistant

Product Details:

Place of Origin: China
Brand Name: UIB, PBQ, ZBY
Certification: ISO9001: 2008
Model Number: 22320 CA/ W33

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: negotiable
Packaging Details: UIB color box, or industrial package as per buyer request
Delivery Time: 5-8 weeks
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Grease Lubricated Speed: 1700 (r/min) Oil Lubricated Speed: 2200 (r/min)
Dynamic Load: 450 (KN) Static Load: 668 (KN)
Bearing Size: 100*215*73 MM Bearing Cage: CCK, CA, MB Available
Applicant: Crusher Machine, Railway Vehicle Axle,

C3 CA Press Steel Spherical Roller Bearing High Temperature Resistant



22320 CA/ W33C3 product advantage:



We using forged bearing rings, strict heat treatment for bearing inner rings and bearin external ring;

Bearing external shage size tolerance guantee to +/-0.001mm,

Bearing rings Hardness HRC60~62,

Special serive from our bearing: Seller provide bearing finall production drawing for mutral confirmation. Only after order confirmed,and seller received buyer deposit.



Main spherical roller bearing cage introduction:

Reinforced Press steel plate type cage (suffix E, domestic very few).

Press steel plate type cage (suffix CC),

Reinforced Glass fiber poly-amide 66 (suffix TVPB),

Machining brass two - plate cage (suffix MB).

Machined brass integral cage (suffix CA),

Stamping steel plate holder (suffix JPA) in vibration.

Brass cage for vibration (suffix EMA).

The same structure, code name on the bearing or different.



The installation for 22320 CA/ W33C3 Crusher machine Bearing

The Spherical roller bearing is arranged between the inner ring of two raceway and the outer ring of the ball, and the bearing with drum roller is assembled. The curvature center of the raceway surface is consistent with the bearing center, so it has the same tuning function as the Spherical ball bearing.

When bending the shaft and the shell, the axial load can be adjusted automatically and in two directions. Radial load capacity is large, suitable for heavy load and impact load. The inner diameter of the inner ring is the bearing of the taper hole, which can be installed directly. Or use a compact sleeve and remove cylinder on the cylinder shaft. Maintain frame with sheet metal stamping, polyamide forming cage and copper alloy car.





For the self-Spherical bearing, when bearing the bearing of the bearing shaft into the box shaft hole, the middle mounting ring can be used to prevent the outer ring from tilting and rotating. It should be remembered that some of the ball bearings with self-Spherical ball bearings protrude from the side of the bearing, so the central mounting ring should be concave to prevent damage. A large number of bearings are usually installed by mechanical or hydraulic pressure.It is better to use the core shaft to install the outer ring roller bearing.

For separable bearings, the inner and outer rings can be separately mounted so that the installation process is simplified, especially when the inner and outer rings need to be combined. When the inner ring has been installed into the bearing box containing outer ring, it is necessary to check whether the inner and outer rings are correct to avoid the bearing raceway and rolling parts. It is recommended to use the mounting sleeve if the cylinder and needle bearings have inner rings with flange edges without flange. The outer diameter of the sleeve should be equal to the inner ring diameter F, and the tolerance standard for machining should be d10.









Spherical roller bearing bearing applicant:



Paper making machinery, speed reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial reducer, vertical arrange ushering self-Spherical bearing.





Spherical roller bearing brief introduction:



The Spherical roller bearing has a double row roller, with a common spherical raceway in the outer ring, with two raceway in the inner ring and an Angle of relative bearing axis.

This ingenious structure make it with automatic self-Spherical properties, and therefore susceptible to shaft and bearing box seat Angle error or the influence of shaft bending, suitable for installation error or shaft deflection caused by the Angle error of the occasion.

In addition to bearing radial load, the bearing can withstand the axial load of bidirectional effect.

Spherical roller bearing inside hole has two kinds of cylindrical and conical, conical taper hole taper for 1:30 and 1:12 two kinds, the conical bore bearing with adapter sleeve or withdrawal sleeves sets, the conical bore Spherical ball bearing can be conveniently and quickly assembled on the optical axis or ladder machine shaft.



The model of Spherical roller bearing is total 6 types:

Spherical roller bearing (20000CC);

Tapered hole Spherical roller shaft bearing (20000CCK type);

Spherical roller bearing (20000CC/W33);

Tapered hole Spherical roller bearing (20000CCK/W33);

Spherical roller bearing (20000CCK+H type) mounted on adapter sleeve;

Spherical roller bearings (20000CCK/W33+H) installed on adapter sleeve.



Our guarantee policy: Under normal usage of  our P6 grade 24030CCK30/W33​  product work life guarantee 3 year.

Spherical roller bearing 22320 CA/ W33C3 22320 CA/ W33C3 22320MB/ W33C3

technical parameters:

Bearing type: Spherical roller bearing Roller row: Double
cage material : CA Press steel  Ring material: GCR15/ AISI52100
Dynamic load (KN): 450 Oil hole: 3
Static load (KN): 668 Bearing clearance: C3
Bearing weight: 13 kg Inner diameter: 100mm
Bearing applicant: Industrial reducer usage Outer diameter: 215mm
Certification: ISO9001:2008 Thickness: 73mm
Heat treatment method: bainite heat treatment Brand: UIB,PBQ,ZBY





The installation 22320CA/W33 Crusher machine Bearing

The Spherical roller bearing is arranged between the inner ring of two raceway and the outer ring of the ball, and the bearing with drum roller is assembled. The curvature center of the raceway surface is consistent with the bearing center, so it has the same tuning function as the Spherical ball bearing.

When bending the shaft and the shell, the axial load can be adjusted automatically and in two directions. Radial load capacity is large, suitable for heavy load and impact load. The inner diameter of the inner ring is the bearing of the taper hole, which can be installed directly. Or use a compact sleeve and remove cylinder on the cylinder shaft. Maintain frame with sheet metal stamping, polyamide forming cage and copper alloy car.

For the self-Spherical bearing, when bearing the bearing of the bearing shaft into the box shaft hole, the middle mounting ring can be used to prevent the outer ring from tilting and rotating. It should be remembered that some of the ball bearings with self-Spherical ball bearings protrude from the side of the bearing, so the central mounting ring should be concave to prevent damage. A large number of bearings are usually installed by mechanical or hydraulic pressure.

For separable bearings, the inner and outer rings can be separately mounted so that the installation process is simplified, especially when the inner and outer rings need to be combined. When the inner ring has been installed into the bearing box containing outer ring, it is necessary to check whether the inner and outer rings are correct to avoid the bearing raceway and rolling parts. It is recommended to use the mounting sleeve if the cylinder and needle bearings have inner rings with flange edges without flange. The outer diameter of the sleeve should be equal to the inner ring diameter F, and the tolerance standard for machining should be d10.

It is better to use the core shaft to install the outer ring roller bearing.



Clearance 22320CA/W33 Crusher machine Bearing

For the mounting axial clearance of the aligning roller bearing, adjust the screw on the shaft neck, adjust the thread of the gasket and bearing hole, or use the extension spring method. The size of the axial clearance is related to the arrangement of the bearing installation, the distance between the bearings and the material of the bearing seat, which can be determined according to working conditions. For high load high speed of spherical roller bearing, adjust clearance, must consider the effect of temperature on the axial clearance, clearance reduction is estimated, will cause the temperature rise, that is to say, the axial clearance to properly adjust a bit bigger. For bearings with low rotating speed and bearing vibration, there should be no gap mounting or preload mounting. The purpose is to make the roller and raceway of the aligning roller bearing good contact, the load evenly distributed, to prevent the roller and raceway from being damaged by the vibration shock. After adjustment, the axial clearance size is tested with a micrometer. The method is to fix the micrometer on the fuselage or the bearing pedestal, so that the micrometer can touch the surface of the polished surface of the shaft and push the axis along the axis, and the maximum pendulum momentum of the dial is the axial clearance value.



22320CAK/W33 specification
bearing type ISO bearing NO. OLD bearing NO. ID OD WIDTH Cr Cor grease lubricatedx
speed
oil lubricated
speed
weight
Spherical roller bearing     (mm) (mm) (mm) (kN) (kN) (r/min) (r/min) (kg)
Spherical roller bearing 22320CCK/W33+H2320 253618 90 215 73 - - - - -
Spherical roller bearing 22320 3620 100 215 73 450 668 1400 1800 13
Spherical roller bearing 22320C/W33 53620Y 100 215 73 608 815 1400 1800 13.4
Spherical roller bearing 22320CC/W33 53620 100 215 73 618 832 1900 2400 12.8
Spherical roller bearing 22320TN1/W33 - 100 215 73 658 855 1900 2400 13
Spherical roller bearing 22320C 53620 100 215 73 13.7
Spherical roller bearing 22320CK 153620 100 215 73 13.5
Spherical roller bearing 22320K 113620 100 215 73 450 668 1400 1800 13
Spherical roller bearing 22320CK/W33 - 100 215 73 608 815 1400 1800 13.4
Spherical roller bearing 22320CCK/W33 153620 100 215 73 618 832 1900 2400 12.8
Spherical roller bearing 22320KTN1/W33 - 100 215 73 658 855 1900 2400 13
Spherical roller bearing 22320KF3/W33 113620W2K 100 215 73 - - - - 13.1
Spherical roller bearing 22320KF3 113620W2 100 215 73 - - - - 13.1
Spherical roller bearing 22320K/W33 113620Y 100 215 73 - - - - 12.5
Spherical roller bearing 22320F3/W33 3620W2K 100 215 73 - - - - 13.1
Spherical roller bearing 22320F3/C9 3620W2U 100 215 73 - - - - 13.1
Spherical roller bearing 22320F3 3620W2 100 215 73 - - - - 13.1
Spherical roller bearing 22320CAK/W33 153620HY 100 215 73 - - - - 12.2
Spherical roller bearing 22320CAK/C3W33 3G153620HY 100 215 73 - - - - 12.6
Spherical roller bearing 22320CAK 153620H 100 215 73 - - - - 13.8
Spherical roller bearing 22320CAF3 53620W2 100 215 73 - - - - 12.9
Spherical roller bearing 22320CA/W33 53620HK 100 215 73 - - - - 13.7





22320CAK/C3W33
