ABEC 1 Steel Roller Bearing , 170mm High Temperature Spherical Roller Bearing

China ABEC 1 Steel Roller Bearing , 170mm High Temperature Spherical Roller Bearing supplier
ABEC 1 Steel Roller Bearing , 170mm High Temperature Spherical Roller Bearing supplier ABEC 1 Steel Roller Bearing , 170mm High Temperature Spherical Roller Bearing supplier ABEC 1 Steel Roller Bearing , 170mm High Temperature Spherical Roller Bearing supplier ABEC 1 Steel Roller Bearing , 170mm High Temperature Spherical Roller Bearing supplier

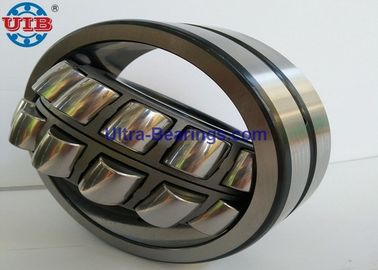

Large Image :  ABEC 1 Steel Roller Bearing , 170mm High Temperature Spherical Roller Bearing

Product Details:

Place of Origin: China
Brand Name: UIB, PBQ, ZBY
Certification: ISO9001:2008
Model Number: 22316CCK/W33

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: negotiable
Packaging Details: UIB color box, or industrial package as per buyer request
Delivery Time: 5-8 weeks
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Bearing Material: Chrome Steel GCR15, AISI52100 Bearing Precision: ABEC-1. ABEC-3, P0, P6
Applicant: Mill Machine, Crusher Machine Bearing Weight: 6.4 KG
Bearing Size: 80*170*58 MM Bearing Cage: CCK, CA, MB Available
Bearing Life: 3 Years Under Normal Usage

ABEC 1 Steel Roller Bearing , 170mm High Temperature Spherical Roller Bearing



Main application maintenance cage introduction:

Reinforced Press steel plate type cage ( suffix E, domestic very few ).

Press steel plate type cage ( suffix CC ),

Reinforced Glass fiber poly-amide 66 ( suffix TVPB ),

Machining brass two - plate cage ( suffix MB ).

Machined brass integral cage ( suffix CA ),

Stamping steel plate holder ( suffix JPA ) in vibration.

Brass cage for vibration ( suffix EMA ).

The same structure, code name on the bearing or different.



Bearing applicant:

Paper making machinery, speed reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial reducer, vertical arrange ushering self-Spherical bearing.



22316CCK/W33 product advantage:

We using forged bearing rings, strict heat treatment for bearing inner rings and bearin external ring;

Bearing external shage size tolerance guantee to +/-0.001mm,

Bearing rings Hardness HRC60~62,

Special serive from our bearing: Seller provide bearing finall production drawing for mutral confirmation. Only after order confirmed,and seller received buyer deposit.



Spherical roller bearing brief introduction:

The Spherical roller bearing has a double row roller, with a common spherical raceway in the outer ring, with two raceway in the inner ring and an Angle of relative bearing axis.

This ingenious structure make it with automatic self-Spherical properties, and therefore susceptible to shaft and bearing box seat Angle error or the influence of shaft bending, suitable for installation error or shaft deflection caused by the Angle error of the occasion.

In addition to bearing radial load, the bearing can withstand the axial load of bidirectional effect.

Spherical roller bearing inside hole has two kinds of cylindrical and conical, conical taper hole taper for 1:30 and 1:12 two kinds, the conical bore bearing with adapter sleeve or withdrawal sleeves sets, the conical bore Spherical ball bearing can be conveniently and quickly assembled on the optical axis or ladder machine shaft.



The model of Spherical roller bearing is total 6 types:

Spherical roller bearing ( 20000CC );

Tapered hole Spherical roller shaft bearing ( 20000CCK type );

Spherical roller bearing ( 20000CC/W33 );

Tapered hole Spherical roller bearing ( 20000CCK/W33 );

Spherical roller bearing ( 20000CCK+H type ) mounted on adapter sleeve;

Spherical roller bearings ( 20000CCK/W33+H ) installed on adapter sleeve.



Our guarantee policy: Under normal usage of  our P6 grade 24030CCK30/W33​  product work life guarantee 3 year.

24030CCK30/W33 technical parameters:

Bearing type: Spherical roller bearing Roller row: Double
cage material : Brass, CA Press steel CC Ring material: GCR15/ AISI52100
Dynamic load (KN): 392 Oil hole: 3
Static load (KN): 508 Bearing clearance: C3
Bearing weight: 6.4 kg Inner diameter: 80mm
Bearing applicant: Industrial blower usage Outer diameter: 170mm
Certification: ISO9001:2008 Thickness: 58 mm
Heat treatment method: bainite heat treatment Brand: UIB,PBQ,ZBY



22316CCK/W33 specification
bearing type ISO bearing NO. OLD bearing NO. ID OD WIDTH Cr Cor grease lubricatedx
speed
oil lubricated
speed
weight
Spherical roller bearing     (mm) (mm) (mm) (kN) (kN) (r/min) (r/min) (kg)
Spherical roller bearing 22316CCK/W33+H2316 253614 70 170 58 - - - - -
Spherical roller bearing 22316 3616 80 170 58 288 405 1900 2600 6.4
Spherical roller bearing 22316C/W33 53616Y 80 170 58 385 498 1900 2600 6.39
Spherical roller bearing 22316CC/W33 53616 80 170 58 392 508 2400 3000 6.32
Spherical roller bearing 22316TN1/W33 - 80 170 58 412 515 2400 3000 6.27
Spherical roller bearing 22316C 53616 80 170 58 392 480 2300 3100 6.15
Spherical roller bearing 22316CK 153616 80 170 58 6.49
Spherical roller bearing 22316K 113616 80 170 58 288 405 1900 2600 6.4
Spherical roller bearing 22316CK/W33 153616Y 80 170 58 385 498 1900 2600 6.39
Spherical roller bearing 22316CCK/W33 153616 80 170 58 392 508 2400 3000 6.32
Spherical roller bearing 22316KTN1/W33 - 80 170 58 412 515 2400 3000 6.27
Spherical roller bearing 22316Q1/C3S0 3G3616QT 80 170 58 - - - - 6.19
Spherical roller bearing 22316Q1 3616Q1 80 170 58 - - - - 6.19
Spherical roller bearing 22316N 203616 80 170 58 - - - - 6.251
Spherical roller bearing 22316L3 - 80 170 58 - - - - 5.84
Spherical roller bearing 22316KF3/W33 113616W2K 80 170 58 - - - - 6.24
Spherical roller bearing 22316KF3 113616W2 80 170 58 - - - - 6.24
Spherical roller bearing 22316K/W33 113616Y 80 170 58 - - - - 6.01
Spherical roller bearing 22316F3/W33 3616W2K 80 170 58 - - - - 6.24
Spherical roller bearing 22316F3 3616W2 80 170 58 - - - - 6.24
Spherical roller bearing 22316CTN1 53616A 80 170 58 - - - - 6.1
Spherical roller bearing 22316CK/C3W33 3G153616Y 80 170 58 - - - - 6.49
