Heavy Duty High Temperature Agriculture Bearings P0 P6 Precision 3305 2RS
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Bearing Precision: | ABEC-3, P0, P6 | Applicant: | Agriculture Machine Bearing, Auto Bearing |
|---|---|---|---|
| Bearing Weight: | 0.37 KG | Inner Size: | 25 Mm |
| Static Load Cr (KN): | 66.1 | Dynamic Load Cor (KN): | 67.3 |
| Outer Size: | 65 Mm | Thickness: | 25.4 Mm |
| Highlight: | high precision bearings,stainless steel ball bearings |
||

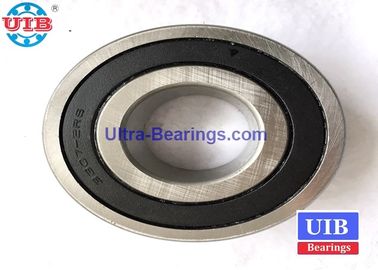

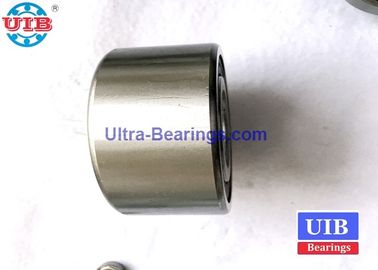

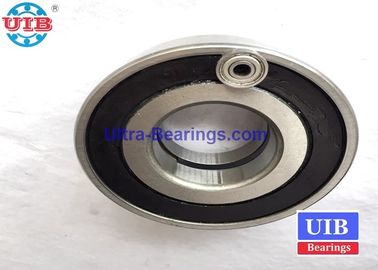

Heavy Duty High Temperature Agriculture Bearings P0 P6 Precision 3305 2RS
Our angular contact bearing 3305 2RS product advantage:
We using standard bearing steel for rings and roller, strict heat treatment for bearing inner rings and bearin external ring;
Using forged raw material for inner and outer rings.
G10 Grage balls, chrome steel Gcr15
We have steel cage and nylon material cage both available, steel cage is much more heavy,and nylon cage is much more light and more durable.
Bearing external shage size tolerance guantee to +/-0.001mm,
Bearing rings Hardness HRC60~62,
We also could do customized size from our factory: Seller provide bearing finall production drawing for mutral confirmation. Only after order confirmed,and seller received buyer deposit.
precision angular contact bearing 3305 Product specifications and parameter data
| bearing type | ISO bearing NO. | OLD bearing NO. | ID | OD | WIDTH | Cr | Cor | grease lubricated speed | oil lubricated speed | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | |||
| angular contact bearing | 3304 | 3056304 | 20 | 52 | 22.2 | 20.8 | 18.4 | 8200 | 11000 | 0.23 |
| angular contact bearing | 3305 | 3056305 | 25 | 62 | 25.4 | 28.9 | 26.5 | 6800 | 9100 | 0.369 |
| angular contact bearing | 3306 | 3056306 | 30 | 72 | 30.2 | 38.1 | 36.1 | 5800 | 7800 | 0.585 |
| angular contact bearing | 3307 | 3056307 | 35 | 80 | 34.9 | 48.6 | 46.8 | 5200 | 7000 | 0.816 |
| angular contact bearing | 3308 | 3056308 | 40 | 90 | 36.5 | 54.1 | 53.8 | 4600 | 6100 | 1.07 |
| angular contact bearing | 3309 | 3056309 | 45 | 100 | 39.7 | 66.1 | 67.3 | 4100 | 5500 | 1.42 |
| angular contact bearing | 3302 | 3056302 | 15 | 42 | 19 | 15.2 | 11.9 | 10000 | 14000 | 0.132 |
| angular contact bearing | 3304A-Z | - | 20 | 52 | 22.2 | - | - | - | - | - |
| angular contact bearing | 3305A | 3256305 | 25 | 62 | 25.4 | 32.7 | 20.8 | 6900 | 9200 | 0.34 |
| angular contact bearing | 3305A-2RS | - | 25 | 62 | 25.4 | - | - | - | - | - |
| angular contact bearing | 3305A-2Z | - | 25 | 62 | 25.4 | - | - | - | - | - |
| angular contact bearing | 3305A-RS | - | 25 | 62 | 25.4 | - | - | - | - | - |
| angular contact bearing | 3305A-Z | - | 25 | 62 | 25.4 | - | - | - | - | - |
| angular contact bearing | 3306A | 3256306 | 30 | 72 | 30.2 | 41 | 28.5 | 5800 | 7700 | 0.51 |
| angular contact bearing | 3306A-2RS | - | 30 | 72 | 30.2 | - | - | - | - | - |
| angular contact bearing | 3306A-2Z | - | 30 | 72 | 30.2 | - | - | - | - | - |
| angular contact bearing | 3306A-RS | - | 30 | 72 | 30.2 | - | - | - | - | - |
| angular contact bearing | 3306A-Z | - | 30 | 72 | 30.2 | - | - | - | - | - |
| angular contact bearing | 3307A | 3256307 | 35 | 80 | 34.9 | 51.2 | 36.2 | 5100 | 6800 | 0.79 |
| angular contact bearing | 3307A-2RS | - | 35 | 80 | 34.9 | - | - | - | - | - |
| angular contact bearing | 3307A-2Z | - | 35 | 80 | 34.9 | - | - | - | - | - |
| angular contact bearing | 3307A-RS | - | 35 | 80 | 34.9 | - | - | - | - | - |
| angular contact bearing | 3307A-Z | - | 35 | 80 | 34.9 | - | - | - | - | - |
| angular contact bearing | 3308A | 3256308 | 40 | 90 | 36.5 | 62.7 | 45.4 | 4600 | 6100 | 1.05 |
| angular contact bearing | 3308A-2RS | - | 40 | 90 | 36.3 | - | - | - | - | - |
| angular contact bearing | 3308A-2Z | - | 40 | 90 | 36.5 | - | - | - | - | - |
| angular contact bearing | 3308A-RS | - | 40 | 90 | 36.5 | - | - | - | - | - |
| angular contact bearing | 3308A-Z | - | 40 | 90 | 36.5 | - | - | - | - | - |
| angular contact bearing | 3309A | 3256309 | 45 | 100 | 39.7 | 75.1 | 55.7 | 4100 | 5500 | 1.42 |
Welcome you to contact us for more information about our other angular contact bearing!
