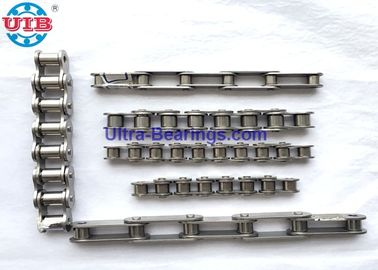

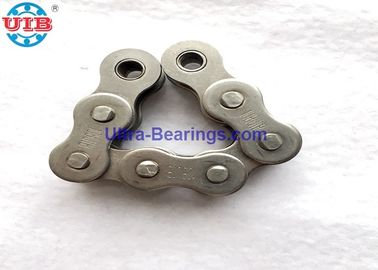

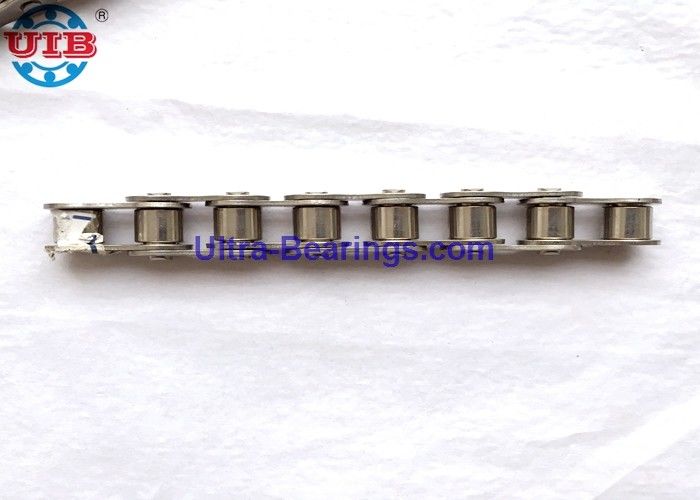

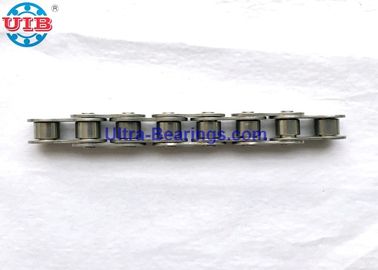

5.5mm Transmission Components , Stainless Steel Simplex Roller Chains

Large Image : 5.5mm Transmission Components , Stainless Steel Simplex Roller Chains

Product Details:

Place of Origin:	China
Brand Name:	UIB
Certification:	ISO9001:2008
Model Number:	08BSS

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	negotiable
Packaging Details:	industrial package, single color box
Delivery Time:	3~ 10days
Payment Terms:	L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability:	10000 pcs / month

Contact Now

Detailed Product Description

Material:	SUS304, SUS420, SUS440, SUS201	Number Of Row:	Simplex Roller(ss) Chains
ANSI Chain NO.:	60SS	DIN Chain NO.:	12ASS
Average Tension:	12	Weight:	0.69 KG/M
Highlight:	duplex roller chain , automatic gearbox parts

5.5mm Transmission Components , Stainless Steel Simplex Roller Chains

Stainless steel chains are particularly suitable for areas where cleaning or certain chemicals require harsh conditions and high and low temperatures.

Stainless Steel chains widely used in food, chemical industry, pharmacy, rubber, printing and wiping, etc. It is a good equipment for modern equipment.

5.5mm Transmission Components , Stainless Steel Simplex Roller Chains

Chain NO.	Pitch	Roller Dia.	In. width	PIN Dia.	PIN length		inner plate	plate thickess	limited tension	Average tension	weight/M
							height		load	Load
	P	d1(max)	b1(min)	d2(max)	L(max)	Lc(max)	h2(max)	T(max)	Q(min)	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN	kN	kg/m
04BSS-1	6	4	2.8	1.85	6.8	7.8	5	0.6	2	2	0.11
05BSS-1	8	5	3	2.31	8.2	8.9	7.1	0.8	3	3.5	0.2
*06BSS-1	9.525	6.35	5.72	3.28	13.15	14.1	8.2	1.2	5.4	6.2	0.41
08BSS-1	12.7	8.51	7.75	4.45	16.7	18.2	11.8	1.5	10.8	12	0.69
10BSS-1	15.875	10.16	9.65	5.08	19.5	20.9	14.7	1.7	13.44	14.5	0.93
12BSS-1	19.05	12.07	11.68	5.72	22.5	24.2	16	1.8	17.4	18.5	1.15
16BSS-1	25.4	15.88	17.02	8.28	36.1	37.4	21	4.0/3.0	3.6	40	2.71
20BSS-1	31.75	19.05	19.56	10.19	41.3	45	26.4	4	57	59	3.7
24BSS-1	38.1	25.4	25.4	14.63	53.4	57.8	33.2	6.0/4.8	96	104	7.1
28BSS-1	44.45	27.94	30.99	15.9	65.1	69.5	36.7	7.5/6.0	120	120	8.5
32BSS-1	50.8	29.21	30.99	17.81	66	71	42	7.0/6.0	150	150	10.25
