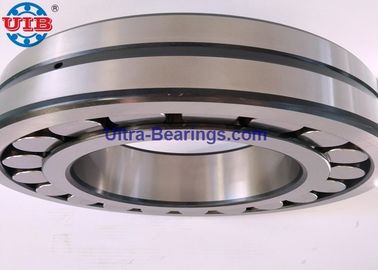

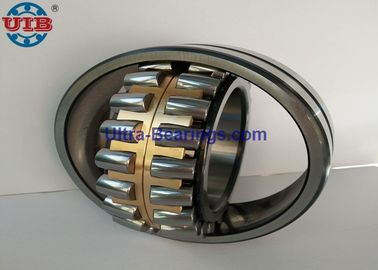

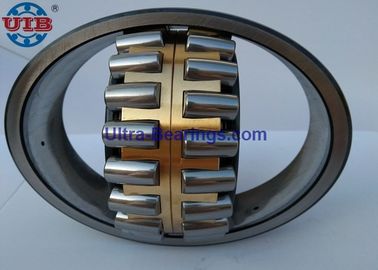

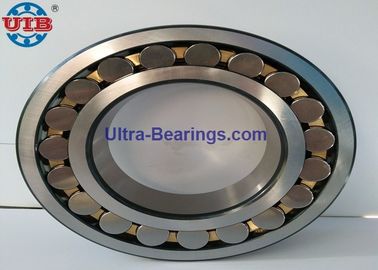

Spherical Roller Bearing GCR15 22316MA P5 Vibrating Screen Bearings

Spherical Roller Bearing GCR15 22316MA P5 Vibrating Screen Bearings

Vibrating screen bearings are mainly used in mine vibration mechanical equipment, vibrating screen machine and vibrating motor, which is one of the most important parts of such equipment.

Our 22316MAW33 P5 product advantage:

We using forged bearing rings, strict heat treatment for bearing inner rings and bearin external ring;

Polished rollers, low noise,

Super grinding ball groove in inner and outer ring,

Special serive from our bearing sales and technical teams: Seller provide bearing finall production drawing for mutral confirmation. Only after order confirmed,and seller received buyer deposit.

Bearing external shage size tolerance guantee to +/-0.001mm,

Bearing rings Hardness HRC60~62, using advanced heat treatment method.

The model of Spherical roller bearing is total 6 types:

Spherical roller bearing (20000CC);

Tapered hole Spherical roller shaft bearing (20000CCK type);

Spherical roller bearing (20000CC/W33);

Tapered hole Spherical roller bearing (20000CCK/W33);

Spherical roller bearing (20000CCK+H type) mounted on adapter sleeve;

Spherical roller bearings (20000CCK/W33+H) installed on adapter sleeve.

Main spherical roller bearing cage introduction:

Reinforced Press steel plate type cage (suffix E, domestic very few).

Press steel plate type cage (suffix CC),

Reinforced Glass fiber poly-amide 66 (suffix TVPB),

Machining brass two - plate cage (suffix MB).

Machined brass integral cage (suffix CA),

Stamping steel plate holder (suffix JPA) in vibration.

Brass cage for vibration (suffix EMA).

The same structure, code name on the bearing or different.

Introduction to the Vibrating screen bearings

Mainly used in mine vibration mechanical equipment, vibrating screen machine and vibrating motor, which is one of the most important parts of such equipment. The bearing operating condition is very bad, not only the environment humidity is big, the dust particle is much, the speed is high, the temperature is high, and has the strong vibration impact, causes the work load is very big. The bearing has strong bearing capacity, good impact resistance, high reliability, good lubrication performance, and can overcome the deflection of the shaft.
The characteristics of
1. Vibrating screen bearings are generally symmetrical aligning roller and cylindrical roller;
2. Generally speaking, the size tolerance is P6, and the operating tolerance is P5. The tolerance is fixed, but there is a British system and a metric system.
3. Because of the high heat, a large gap was selected. But the gap can be calculated, mainly considering the original clearance, tolerance and temperature rise can be calculated;
4. The application requirements of vibrating screen bearings are very high, and the materials of plain bearing steel are not acceptable. The cage is made of machined brass and is guided by the outer ring to apply to the case of eccentricity loads!

Welcome to click site inquiry to us, we could reply you immediately!
