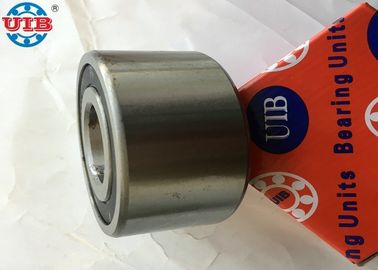

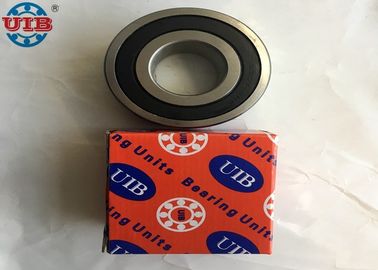

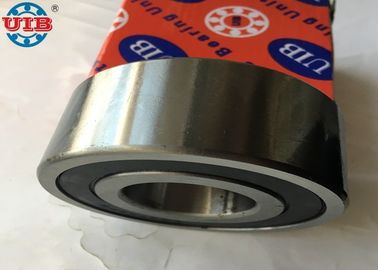

UIB 40mm 3308 2RS Agriculture Machine Bearing ABEC 1 ABEC 3 Chrome Steel Gcr15
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Bearing Material: | Chrome Steel GCR15, 52100 | Bearing Precision: | ABEC-1. ABEC-3, P0, P6 |
|---|---|---|---|
| Applicant: | Agriculture Machine Bearing | Bearing Weight: | 1.07KG |
| Bearing Size: | 35*80*34.9mm | Work Life: | 3 Years |
| Static Load Cr (KN): | 54.1 | Dynamic Load Cor (KN): | 53.8 |
| High Light: | stainless steel ball bearings,low friction bearings |
||
UIB 40mm 3308 2RS Agriculture Machine Bearing ABEC 1 ABEC 3 Chrome Steel Gcr15
Our motorcycle bearing 3308 product advantage:
We using standard bearing steel for rings and roller, strict heat treatment for bearing inner rings and bearin external ring;
We have steel cage and nylon material cage both available, steel cage is much more heavy,and nylon cage is much more light and more durable.
Bearing external shage size tolerance guantee to +/-0.001mm,
Bearing rings Hardness HRC60~62,
We also could do customized size from our factory: Seller provide bearing finall production drawing for mutral confirmation. Only after order confirmed,and seller received buyer deposit.
precision taper roller bearing 3308,3300 series Product specifications and parameter data
| bearing type | ISO bearing NO. | OLD bearing NO. | ID | OD | WIDTH | Cr | Cor | grease lubricated speed | oil lubricated speed | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | |||
| angular contact bearing | 3304 | 3056304 | 20 | 52 | 22.2 | 20.8 | 18.4 | 8200 | 11000 | 0.23 |
| angular contact bearing | 3305 | 3056305 | 25 | 62 | 25.4 | 28.9 | 26.5 | 6800 | 9100 | 0.369 |
| angular contact bearing | 3306 | 3056306 | 30 | 72 | 30.2 | 38.1 | 36.1 | 5800 | 7800 | 0.585 |
| angular contact bearing | 3307 | 3056307 | 35 | 80 | 34.9 | 48.6 | 46.8 | 5200 | 7000 | 0.816 |
| angular contact bearing | 3308 | 3056308 | 40 | 90 | 36.5 | 54.1 | 53.8 | 4600 | 6100 | 1.07 |
| angular contact bearing | 3309 | 3056309 | 45 | 100 | 39.7 | 66.1 | 67.3 | 4100 | 5500 | 1.42 |
| angular contact bearing | 3302 | 3056302 | 15 | 42 | 19 | 15.2 | 11.9 | 10000 | 14000 | 0.132 |
| angular contact bearing | 3304A-Z | - | 20 | 52 | 22.2 | - | - | - | - | - |
| angular contact bearing | 3305A | 3256305 | 25 | 62 | 25.4 | 32.7 | 20.8 | 6900 | 9200 | 0.34 |
| angular contact bearing | 3305A-2RS | - | 25 | 62 | 25.4 | - | - | - | - | - |
| angular contact bearing | 3305A-2Z | - | 25 | 62 | 25.4 | - | - | - | - | - |
| angular contact bearing | 3305A-RS | - | 25 | 62 | 25.4 | - | - | - | - | - |
| angular contact bearing | 3305A-Z | - | 25 | 62 | 25.4 | - | - | - | - | - |
| angular contact bearing | 3306A | 3256306 | 30 | 72 | 30.2 | 41 | 28.5 | 5800 | 7700 | 0.51 |
| angular contact bearing | 3306A-2RS | - | 30 | 72 | 30.2 | - | - | - | - | - |
| angular contact bearing | 3306A-2Z | - | 30 | 72 | 30.2 | - | - | - | - | - |
| angular contact bearing | 3306A-RS | - | 30 | 72 | 30.2 | - | - | - | - | - |
| angular contact bearing | 3306A-Z | - | 30 | 72 | 30.2 | - | - | - | - | - |
| angular contact bearing | 3307A | 3256307 | 35 | 80 | 34.9 | 51.2 | 36.2 | 5100 | 6800 | 0.79 |
| angular contact bearing | 3307A-2RS | - | 35 | 80 | 34.9 | - | - | - | - | - |
| angular contact bearing | 3307A-2Z | - | 35 | 80 | 34.9 | - | - | - | - | - |
| angular contact bearing | 3307A-RS | - | 35 | 80 | 34.9 | - | - | - | - | - |
| angular contact bearing | 3307A-Z | - | 35 | 80 | 34.9 | - | - | - | - | - |
| angular contact bearing | 3308A | 3256308 | 40 | 90 | 36.5 | 62.7 | 45.4 | 4600 | 6100 | 1.05 |
| angular contact bearing | 3308A-2RS | - | 40 | 90 | 36.3 | - | - | - | - | - |
| angular contact bearing | 3308A-2Z | - | 40 | 90 | 36.5 | - | - | - | - | - |
| angular contact bearing | 3308A-RS | - | 40 | 90 | 36.5 | - | - | - | - | - |
| angular contact bearing | 3308A-Z | - | 40 | 90 | 36.5 | - | - | - | - | - |
| angular contact bearing | 3309A | 3256309 | 45 | 100 | 39.7 | 75.1 | 55.7 | 4100 | 5500 | 1.42 |
Welcome you to contact us for more information about our other angular contact bearing!
