Ultra Ideal Bearing solution!
Payment & Shipping Terms:
|Bearing Material:||Thermostability||Package:||Industrial Packge|
|Worklife:||100000 Hours||Basic Load Rating:||161.8 KN|
|Dynamic Load Rating:||138 KN||Ball Grade:||G16|
|Bearing Size:||10*35*10mm||Applicant:||Trolley Conveyor Roller|
high speed bearings,
heavy duty bearings

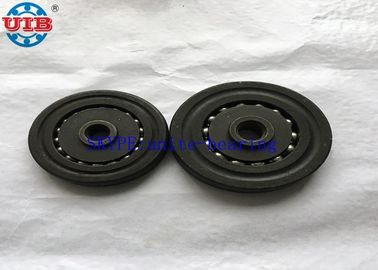

Trolley Conveyor High Temperature Bearings , 10*35*10mm G16 High Heat Bearings
I. Product brief introduction:
We use excellent high carbon steel with heat treatment to improve bearing steel anti-high temperature ability. Bearable steel,it is specially used for high temperature bearing, assembled with G10 Grade bearing steel balls.
With strictly heat treatment our bearing hardness could reach to HRC40~50 (This is only for high carbon steel),to guarantee long work life. Our bearing grooves has been grinded and polished to guarantee the bearing movement in smooth. Our quality has been approved by China market overhead chain manufacturers.
This high carbon steel is much more cost-effective compare to chrome steel, which the working condition has low workload, and movement very small, especially for overhead conveyor chains trolley rollers, which not require high precision.
II. Product Applications:
It is widely used in high termperature work condition, painting room, painting machines, high temperature electric motors,reducers,and other machines like: food processing and production lines, medical machinery, pharmaceutical machinery, food machinery, chemical machinery production line, packaging machinery.
III. Product Features:
High terperature could bearing 200~300,300~500,500~1000degrees.
High precision bearing quality P0,P6,Grade available,tolerance as per China national standard,also comply with internation standard.
Long worklife at leat 10000 work hour guranteed.
|Bearing size||as per drawing size, customized size|
|Precision grade||P0,P6,P5 available|
|Package||UIB color box or industrial package, customer request|
We could able to provide drawing after buyer provide us basic size.
Before selecting bearing type, we have to evaluate the working conditions, for example, the working load maximum, the working movement of bearing speed, the temperature during working, grease required etc. Confirm all factors which could affect our bearing worklife, so our bearing engeering could select a best type of bearing from deep groove ball bearing, cylindrical roller bearing, spherical ball bearing, spherical roller bearing,etc.
We could provide also high temperature steel, chrome steel for customer request.
Our principle of UIB is to provide our customers with "Ultra Ideal Bearing" solutions!
