Ultra Ideal Bearing solution!
Payment & Shipping Terms:
|Bearing Type:||Auto Wheel Bearing||Cr:||196 KN|
|Cor:||242 KN||Roller Process:||Polished|
|Hardness:||HRC60~ 65||Old Bearing No.:||7313E|

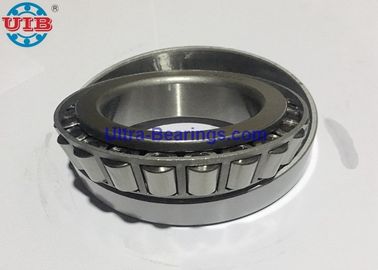

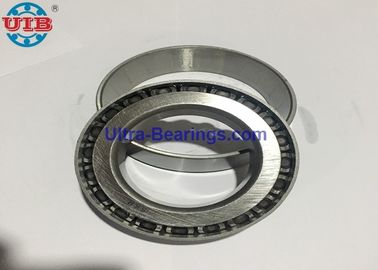

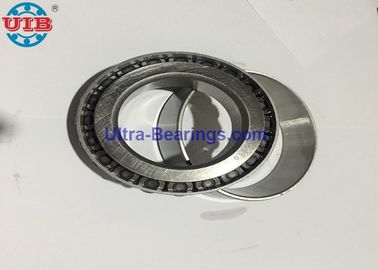

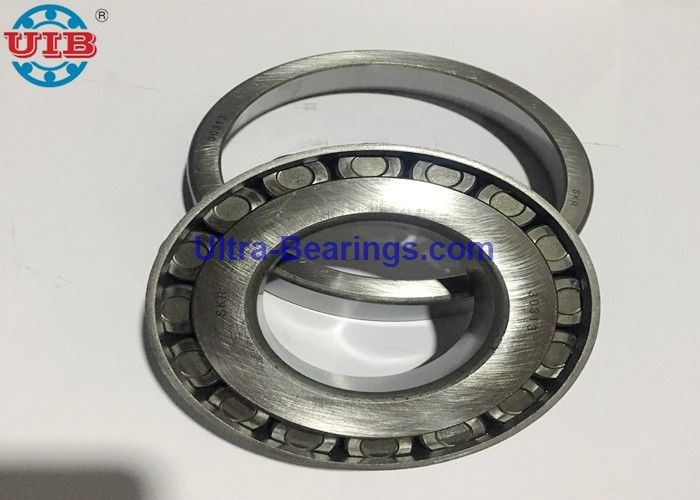

UIB 65mm High Temp Wheel Hub Bearing , GCR15 Press Steel Single Row Bearings
Our product advantage:
1, Standard Gcr15 material, AISI 52100 steel,
2, Heat Treatment Hardness HRC60~65
3, Polished rollers,
4, OEM Quality, P6,P4,ABEC-3,ABEC-5 precision Grade.
32207 Auto Wheel BearingDescripition: unit:Inch
|Cross Interchange Parts||auto wheel bearing NO.|
|Application & Descripition|
|Inside Diameter:||65 mm,2.5591 in|
|Outside Diameter:||140 mm,5.5118 in|
|Width:||36.5 mm,1.437 in|
|Bearing type:||Taper roller bearing||Roller row:||Single|
|cage material :||Press steel||Ring material:||GCR15/ AISI52100|
|Dynamic load Cor(KN):||242||Oil hole:||NON|
|Static load Cr (KN):||195||Bearing clearance:||C3|
|Bearing weight:||2.442kg||Inner diameter:||65mm|
|Bearing applicant:||auto wheel bearing||Outer diameter:||140mm|
|Heat treatment method:||bainite heat treatment||Brand:||UIB,PBQ,ZBY|
Forged bearing rings, have much better quality then normal steel tube rings.
he difference between forging and casting material:
Forging is formed by forging after the metal is heated in solid state. It requires the metal to have good thermoplastic (also known as forging), and the general forging is steel, which is of high strength and plasticity, which is suitable for high quality and high quality components. Such as bolts, shafts, gears, axle, etc.
The casting metal is formed in liquid casting and casting. It requires good fluidity, filling ability of liquid metal, etc. (also called casting), divided into two cast steel and cast iron in the iron and steel casting, iron carbon content is higher than steel, its low strength over steel, plastic, poor general tolerances for the production is not very big parts, such as machine tools, such as the low pressure valve; Steel casting strength is high, used for making complex parts, such as chain rail, high pressure valve seat, etc.
|bearing type||ISO bearing NO.||OLD bearing NO.||ID||OD||WIDTH||Cr||Cor||grease lubricatedx
|auto wheel bearing||(mm)||(mm)||(mm)||(kN)||(kN)||(r/min)||(r/min)||(kg)|
|auto wheel bearing||30313||7313E||65||140||33||195||242||2800||3600||2.44|
|auto wheel bearing||46T30313DJ/53||-||65||140||79||273||365||1900||2700||5.62|
|auto wheel bearing||46T30313J/63||-||65||140||79||316||419||2300||3000||5.62|
|auto wheel bearing||30313DJR||-||65||140||36||176||209||2400||3400||2.44|
|auto wheel bearing||30313CR||-||65||140||36||193||227||2900||3900||2.44|
|auto wheel bearing||30313JR||-||65||140||36||204||239||2800||3800||2.56|
