HT200 HT250 Plummer Block Bearing , Adjustable Split Housing Pillow Block Bearings

China HT200 HT250 Plummer Block Bearing , Adjustable Split Housing Pillow Block Bearings supplier
HT200 HT250 Plummer Block Bearing , Adjustable Split Housing Pillow Block Bearings supplier HT200 HT250 Plummer Block Bearing , Adjustable Split Housing Pillow Block Bearings supplier HT200 HT250 Plummer Block Bearing , Adjustable Split Housing Pillow Block Bearings supplier HT200 HT250 Plummer Block Bearing , Adjustable Split Housing Pillow Block Bearings supplier

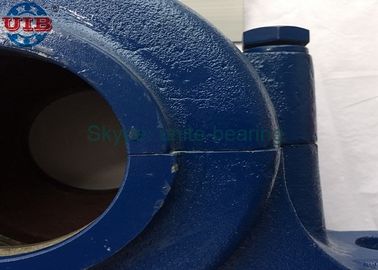

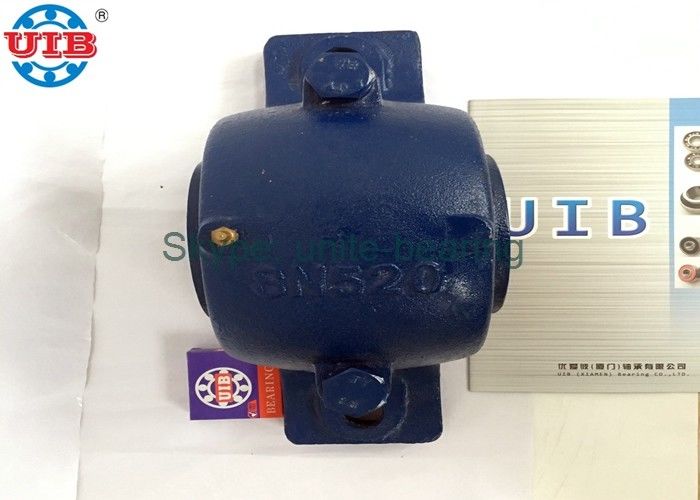

Large Image :  HT200 HT250 Plummer Block Bearing , Adjustable Split Housing Pillow Block Bearings

Product Details:

Place of Origin: China
Brand Name: UIB
Certification: ISO9001:2008
Model Number: SN515

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiable
Packaging Details: UIB single color box, industrial package
Delivery Time: as per order quantity
Payment Terms: L/C, T/T, D/P, Western Union, Paypal
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Bearing Material: Chrome Steel Gcr15, 52100 Housing Material: HT200, HT250 Cast Iron, Cast Steel C45
Adapter Sleeve: HE215 Housing Color: Blue, Green, Gray
Bearing Size: 22215 MBW33C3 Housing Size: SN515
Weight: 7.4kg Applicant: Industrial Fan And Blower, Steel Mill Process Machine

HT200 HT250 Plummer Block Bearing , Adjustable Split Housing Pillow Block Bearings



What are the advantages of the split bearing housing and the flange bearing housing?


Split type bearing housing, plummer block bearing housing.
The dissection bearing housing is the most common installation component, the product design level is divided, the cover and the bottom can be broken up, so the equipment installation and debugging and maintenance.


It's also very convenient. For the demanding equipment, the split type bearing housing is also designed for two kinds of stud holes. These are the main components
Bear the radial load directly under the inner base. Used for demanding and high equipment. This bearing housing can be adapted to a wide range of dimensions and can withstand high load.



The heavy bearing pedestal adopts grey cast iron for its standard configuration, and provides the choice of flexibility in sealing and lubrication, available grease or oil.



The applicable equipment includes: the belt type processing equipment in the steel mill, the fan and blower, the wool cloth roller and the drying of the paper industry.
Drying cylinder, ore procegssing industry used crusher, hammer type grinder and kiln. The standard dissection bearing housing is made from cast iron, cast steel, ductile iron.



The split type bearing pedestal can choose LEP/LOR three ring oil seal, contact oil seal, corner oil seal and end cover. Work the shaft and bearing surface.


The clearance is small so as to prevent the contamination from entering and retaining the grease or oil. This ensures that the bearing and bearing pedestal can last longer.
In addition to the large equipment, the SKF split type bearing seat has three forms SAFSAW and SDAF. The fourth is called the extension series, which is designed to meet the requirements of large equipment, the requirements include axial dimensions between 250 and 500mm.


Installation - cylinder mounting


The cylinder hole installation includes the interference fit to fit a straight hole bearing into a cylindrical shaft. This assembly method is especially suitable for high speed setting to prepare.



In the cylinder hole installation, the shaft must have precise tolerances at the bearing seat and the thread on the nut must be machined, it is often necessary to heat the inner ring.


Installation - taper hole mounting


When the adapter is installed, conical bore bearings are mounted on the cylinder shaft through a tapered adapter. The adapter installation is considered generic
In this method, the bearing is loaded on the shaft. The shaft seat does not need to be machined like the precision tolerances required for cylindrical holes.
And this installation method does not require heating bearings. In addition, it is also quite convenient to use conical adapters when disassembling. The total installed by the adapter


The body cost is also less than the cylinder hole installation.


The positioning ring is fixed in the bearing seat, also known as the "fixed" bearing. Other terms "fixed or floating" or more "positioning or not positioning.


Flange bearing seat


There are many types of flange bearings: square, round, diamond, convex, convex, circular, and sliding block.
The mounting hole of type flange bearing seat has four holes, three holes, two holes and no mounting holes. The sliding-block type with no mounting hole is two sliders up and down slot.



You can move back and forth on the rack. Therefore, it is best to adjust the distance between axes. The axis of the machine can be moved in operation multi-purpose on belt, chain and other transmission shafts.



The flange bearing seat is the most typical and most commonly used type, which is applicable to all gearing and the shaft and the mounting plane parallel to the machine when using full strength and steel.



plummer block bearing SN500 series
ousing
No.
Shaft Dia
d1
Dimensions(mm) Hou-
sing
Wt
(kg)
Bearing No. Adapter Sleeve Locating Ring
mm in D
H8
a b c g
H12
h
h12
L L1 W n m s u v x d2
H12
d3
H12
f1
H13
f2 Number Q
T
Y
SN505 20 3/4 52 165 46 22 25 40 67 70 75 25 130 M12 15 20 22 21.5 31 3 4.2 1.4 1205K
2205K
22205K H205
H305
HE205
HE305
SR52x5
SR52x7
2
1
SN506 25 1 62 185 52 22 30 50 77 80 90 25 150 M12 15 20 22 26.5 38 4 5.4 2.15 1206K
2206K
22206K H206
H306
HE206
HE306
SR62x7
SR62x10
2
1
SN507 30 1-1/8 72 185 52 22 33 50 82 85 95 25 150 M12 15 20 24 31.5 43 4 5.4 2.35 1207K
2207K
22207K H207
H307
HE207
HE307
SR72x8
SR72x10
2
1
SN508 35 1-1/4 80 205 60 25 33 60 85 90 110 30 170 M12 15 20 26 36.5 48 4 5.4 3.2 1208K
2208K
22208K H208
H308
HE208
HE308
SR80x7.5
SR80x10
2
1
SN509
SSN509
40 1-1/2 85 205 60 25 31 60 85 90 112 30 170 M12 15 20 28 41.5 53 4 5.4 3.0
4.4
1209K
2209K
22209K H209
H309
HE209
HE309
SR85x6
SR85x8
2
1
SN510
SSN510
45 1-3/4 90 205 60 25 33 60 90 95 115 30 170 M12 15 20 28 46.5 58 4 5.4 3.75
5.0
1210K
2210K
22210K H210
H310
HE210
HE310
SR90x6.5
SR90x10
2
1
SN511
SSN511
50 2 100 255 70 28 33 70 95 100 130 35 210 M16 18 23 30 51.5 67 5 6.9 5.3
7.15
1211K
2211K
22211K H211
H311
HE211
HE311
SR100x6
SR100x8
2
1
SN512
SSN512
55 2-1/8 110 255 70 30 38 70 105 110 135 35 210 M16 18 23 32 56.5 72 5 6.9 6.3
7.95
1212K
2212K
22212K H212
H312
HE212
HE312
SR110x8
SR110x10
2
1
SN513
SSN513
60 2-1/4 120 275 80 30 43 80 110 115 150 40 230 M16 18 23 36 62 77 5 6.8 6.8
9.9
1213K
2213K
22213K H213
H313
HE213
HE313
SR120x10
SR120x12
2
1
SN515
SSN516
65 2-1/2 130 280 80 30 41 80 115 120 155 40 230 M16 18 23 38 67 82 5 6.8 7.4
9.3
1215K
2215K
22215K H215
H315
HE215
HE315
SR130x8
SR130x10
2
1
SN516
SSN516
70 2-3/4 140 315 90 32 43 95 120 125 175 50 260 M20 22 27 40 72 89 6 8.1 11.4
14.5
1216K
2216K
22216K H216
H316
HE216
HE316
SR140x8.5
SR140x10
2
1
SN517
SSN517
75 3 150 320 90 32 46 95 125 130 185 50 260 M20 22 27 42 77 94 6 8.1 11.1
15.5
1217K
2217K
22217K H217
H317
HE217
HE317
SR150x9
SR150x10
2
1
SN518
SSN518
80 3-1/4 160 345 100 35 62.4 100 145 150 195 50 290 M20 22 27 50 82 99 6 8.1 17
20.2
1218K
2218K
22218K
23218K
H218
H318
H2318
HE218
HE318
HE2318
SR160x16.2
SR160x11.2
SR160x10
2
2
1
SN519
SSN519
85   170 345 100 35 53 112 140 145 210 50 290 M20 22 27 52 87 104 6 8.1 15.5 1219K
2219K
22219K H219
H319
HE219
HE319
SR170x10.5
SR170x10
2
1
SN520
SSN520
90 3-1/2 180 380 110 40 70.3 112 160 165 218 60 320 M24 26 32 54 92 111 7 9.3 23
27.5
2220K 22220K
23220K
H320
H2320
HE320
HE2320
SR180x12.1
SR180x10
2
1
SN522
SSN522
100 4 200 410 120 45 80 125 175 180 240 70 350 M24 26 32 60 102 125 8 10.8 29
35
2222K 22222K
23222K
H322
H2322
HE322
HE2322
SR200x13.5
SR200x10
2
1
SN524
SSN524
110 4-1/4 215 410 120 45 86 140 185 190 270 70 350 M24 26 32 64 113 135 8 10.7 33.6
43.8
  22224K
23224K
H3124
H2324
HE3124
HE2324
SR215x14
SR215x10
2
1
SN526
SSN526
115 4-1/2 230 445 130 50 90 150 190 195 290 70 380 M24 28 36 64 118 140 8 10.7 41
50.4
  22226K
23226K
H3126
H2326
HE3126
HE2326
SR230x13
SR230x10
2
1
SN528
SSN528
125 5 250 500 150 50 98 150 205 210 305 80 420 M30 33 42 70 128 154 9 12.2 49
62
  22228K
23228K
H3128
H2328
HE3128
HE2328
SR250x15
SR250x10
2
1
SN530
SSN530
135 5-1/4 270 530 160 60 106 160 220 225 325 90 450 M30 33 42 76 138 164 9 12.2 60
75
  22230K
23230K
H3130
H2330
HE3130
HE2330
SR270x16.5
SR270x10
2
1
SN532
SSN532
140 5-1/2 290 550 160 60 114 170 235 240 345 90 470 M30 33 42 80 143 173 10 13.7 68.8
87
  22232K
23232K
H3132
H2332
HE3132
HE2332
SR290x17
SR290x10
2
1
  For more information and samples please contact us by email or by skype: unite-bearing !


plummer block SN515
