11.3kn High Precision Conveyor Roller Bearing Cast Steel AISI 52100 Anti Corrosion

China 11.3kn High Precision Conveyor Roller Bearing Cast Steel AISI 52100 Anti Corrosion supplier
11.3kn High Precision Conveyor Roller Bearing Cast Steel AISI 52100 Anti Corrosion supplier 11.3kn High Precision Conveyor Roller Bearing Cast Steel AISI 52100 Anti Corrosion supplier 11.3kn High Precision Conveyor Roller Bearing Cast Steel AISI 52100 Anti Corrosion supplier 11.3kn High Precision Conveyor Roller Bearing Cast Steel AISI 52100 Anti Corrosion supplier 11.3kn High Precision Conveyor Roller Bearing Cast Steel AISI 52100 Anti Corrosion supplier

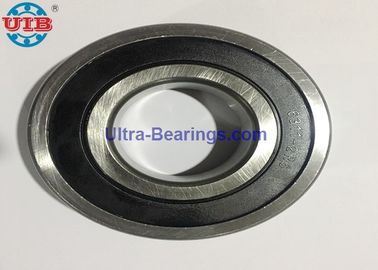

Large Image :  11.3kn High Precision Conveyor Roller Bearing Cast Steel AISI 52100 Anti Corrosion

Product Details:

Place of Origin: China
Brand Name: UIB
Certification: ISO9001:2008
Model Number: 6305 2RS

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: negotiable
Packaging Details: industrial package, single UIB color box
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000per month
Contact Now
Detailed Product Description
Bearing Material: Chrome Steel GCR15 Bearing Precision: ABEC-1, P0
Package: Industrial Package Applicant: Conveyor Roller
Bearing Height: 17 Mm Inner Ring Size: 25 Mm
Outer Ring Size: 62 Mm Searls Type: 2RS, Rubber Cover

11.3kn High Precision Conveyor Roller Bearing Cast Steel AISI 52100 Anti Corrosion



I. Product brief introduction:



Conveyor roller had several layers of nylon roller bearing seal protection, sealed performance is good, bearing and seal to reinvent the wheel, open type roller bearing convenient installation themselves according to the actual situation before mastering roller bearing lubrication oil filling quantity.



We using standard chrome steel GCR15, AISI52100 to prepare our rings, G10,G16 grade bearing balls.

Both inner and outer ring groove has to be polished to guarantee bearing movement more fluent and low noise.

Our bearing work life more longer then ordinary bearings, because our polish working time is longer then market normal level.



6305 2RS parameters
Bearing dynamic load Cor 11.3 KN
Bearing static load Cr 20.6 KN
Bearing weight 0.232 KG



II. Product advantage:

Competitive price and quite stable quality;

Large stock rings, fast delivery guranteed.



III. Product applicant:



6305 2RS Mainly used in conveyor rollers in normal precision grade.

Higher precision used in engine bearing, motorcycle front wheel, electric motors.



conveyor roller bearing 6305 2RS specification

bearing type ISO bearing NO. OLD bearing NO. ID OD WIDTH Cr Cor grease lubricatedx
speed
oil lubricated
speed
weight
      (mm) (mm) (mm) (kN) (kN) (r/min) (r/min) (kg)
conveyor roller bearing 6305 305 25 62 17 20.6 11.3 11000 13000 0.232
conveyor roller bearing 6305-Z 60305 25 62 17 22.2 11.5 10000 14000 0.22
conveyor roller bearing 6305-2Z 80305 25 62 17 22.2 11.5 10000 14000 0.22
conveyor roller bearing 6305N 50305 25 62 17 222 11.5 10000 14000 0.22
conveyor roller bearing 6305-ZN 150305 25 62 17 222 11.5 10000 14000 0.22
conveyor roller bearing 7305B 66305 25 62 17 22.9 13.3 10000 14000 0.243
conveyor roller bearing 3305 3056305 25 62 25.4 28.9 26.5 6800 9100 0.369
conveyor roller bearing 6305-ZZ - 25 62 17 0.229
conveyor roller bearing 6305-2RS 180305 25 62 17 0.229
conveyor roller bearing 6305-N - 25 62 17 0.22
conveyor roller bearing 3305A 3256305 25 62 25.4 32.7 20.8 6900 9200 0.34
conveyor roller bearing 7305C 36305 25 62 17 26.4 15.3 19000 25000 0.243
conveyor roller bearing 7305BM 66305H 25 62 17 0.24
conveyor roller bearing 6305E 305E 25 62 17 0.16
conveyor roller bearing 6305/Z2 305Z2 25 62 17 0.16
conveyor roller bearing 6305/Z3 - 25 62 17 0.16
conveyor roller bearing 6305-Z/Z2 - 25 62 17 0.16
conveyor roller bearing 6305-Z/Z3 - 25 62 17 0.16
conveyor roller bearing 6305-2Z/Z2 - 25 62 17 0.16
conveyor roller bearing 6305-2Z/Z3 80305Z3 25 62 17 0.16
conveyor roller bearing 6305-RS 160305 25 62 17 0.16
conveyor roller bearing 6305-RS/Z2 - 25 62 17 0.16
